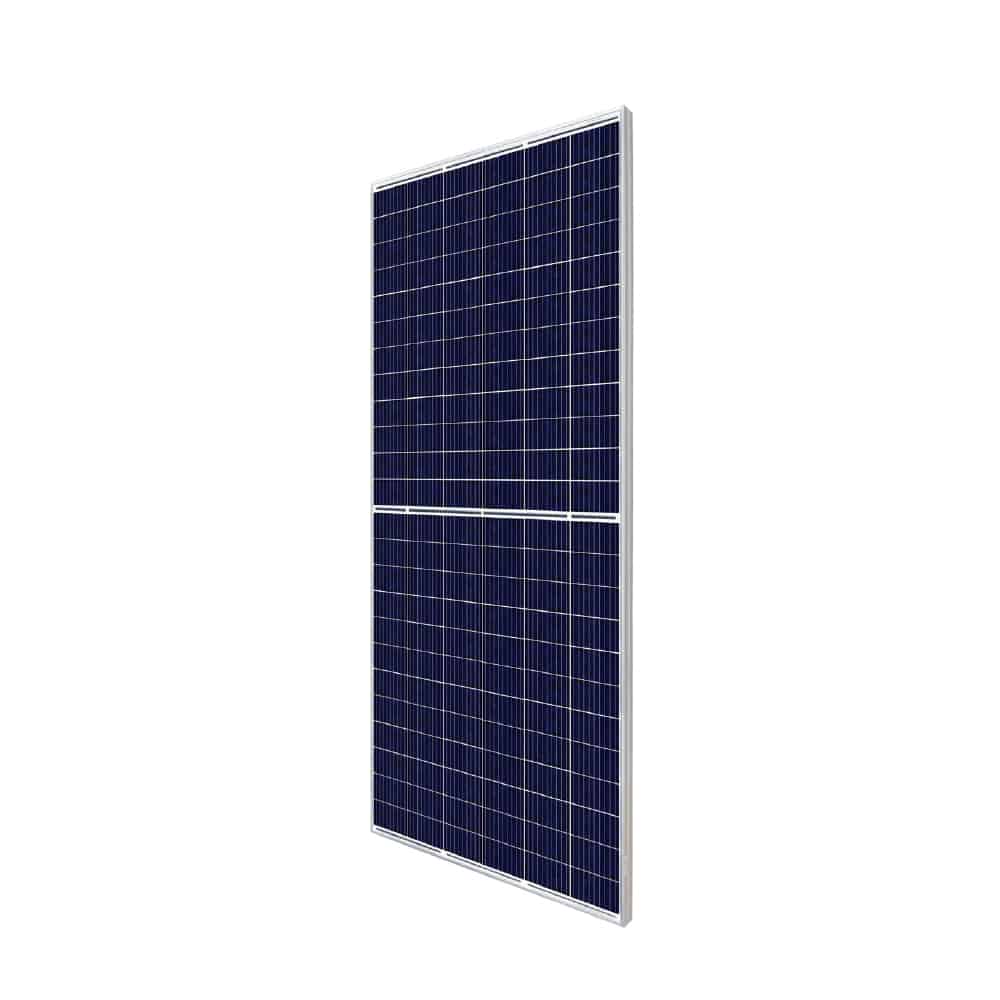

Solar Panels – Canadian 360W poly half cell module, MC4

R2,592.00 -including VAT

ELECTRICAL DATA \| STC	CS3U-300P	CS3U-355	CS3U-360	CS3U-365	CS3U-370
Nominal Max. Power (Pmax)	300W	355W	360W	365W	370W
Opt. Operating Voltage (Vmp)	32.7V	39.6V	39.6V	39.8V	40.0V
Opt. Operating Current (Imp)	9.18A	9.02A	9.1A	9.18A	9.26A
Open Circuit Voltage (Voc)	39.3V	46.8V	47.0V	47.2V	47.4V
Short Circuit Current (Isc)	9.65	9.59A	9.67A	9.75A	9.83A
Module Efficiency	18.05%	17.89%	18.15%	18.40%	18.65%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1500V (IEC/UL) or 1000V (IEC/UL)
Max. Series Fuse Rating	30A
Application Classification	Class A
Power Tolerance	0 ~ + 5 W

Out of stock

SKU: CASolar_MC4_001-1 Category: Solar Panels

ELECTRICAL DATA \| STC	CS3U-300P	CS3U-355	CS3U-360	CS3U-365	CS3U-370
Nominal Max. Power (Pmax)	300W	355W	360W	365W	370W
Opt. Operating Voltage (Vmp)	32.7V	39.6V	39.6V	39.8V	40.0V
Opt. Operating Current (Imp)	9.18A	9.02A	9.1A	9.18A	9.26A
Open Circuit Voltage (Voc)	39.3V	46.8V	47.0V	47.2V	47.4V
Short Circuit Current (Isc)	9.65	9.59A	9.67A	9.75A	9.83A
Module Efficiency	18.05%	17.89%	18.15%	18.40%	18.65%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1500V (IEC/UL) or 1000V (IEC/UL)
Max. Series Fuse Rating	30A
Application Classification	Class A
Power Tolerance	0 ~ + 5 W

Weight	22.3 kg
Dimensions	1979 × 99 × 40 cm
